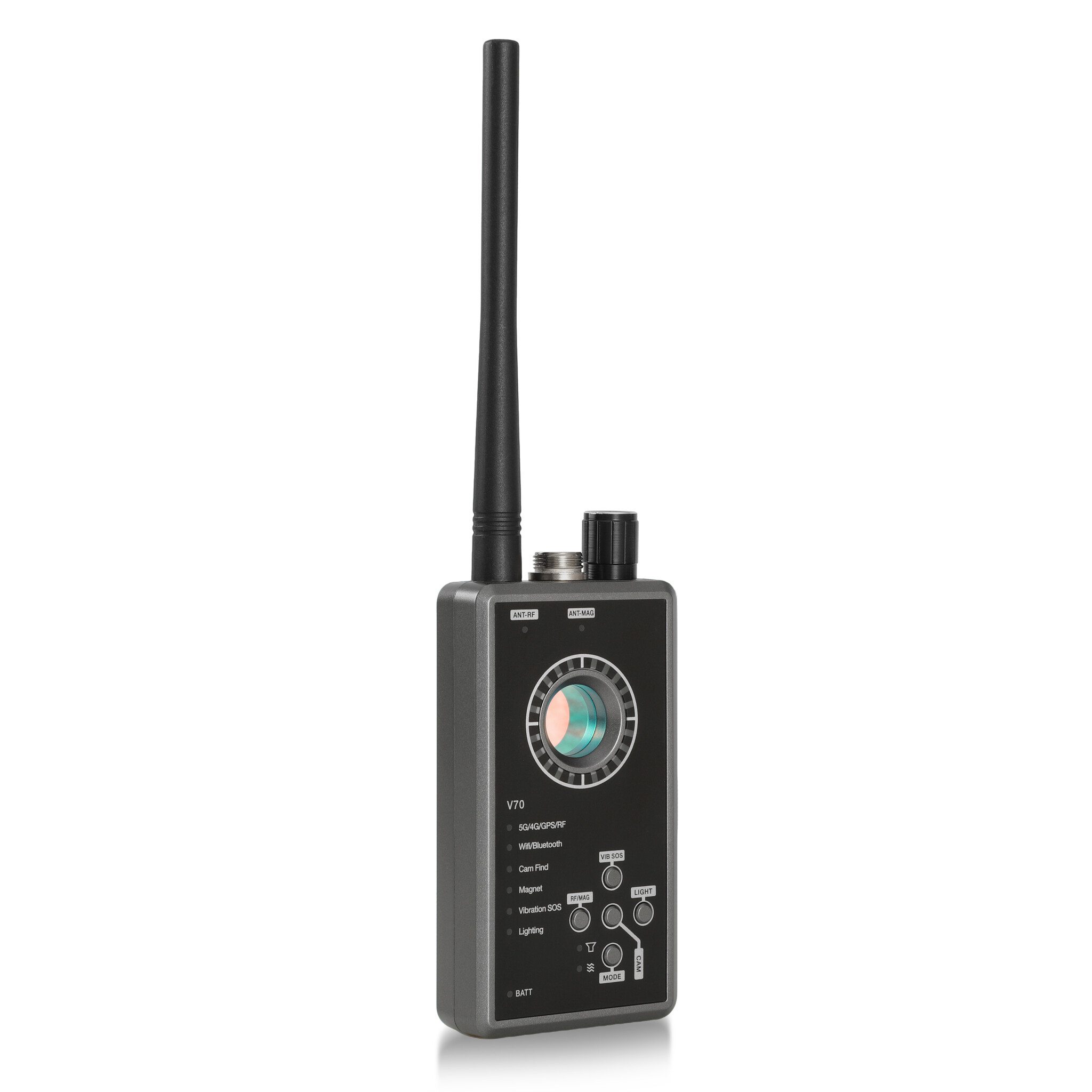

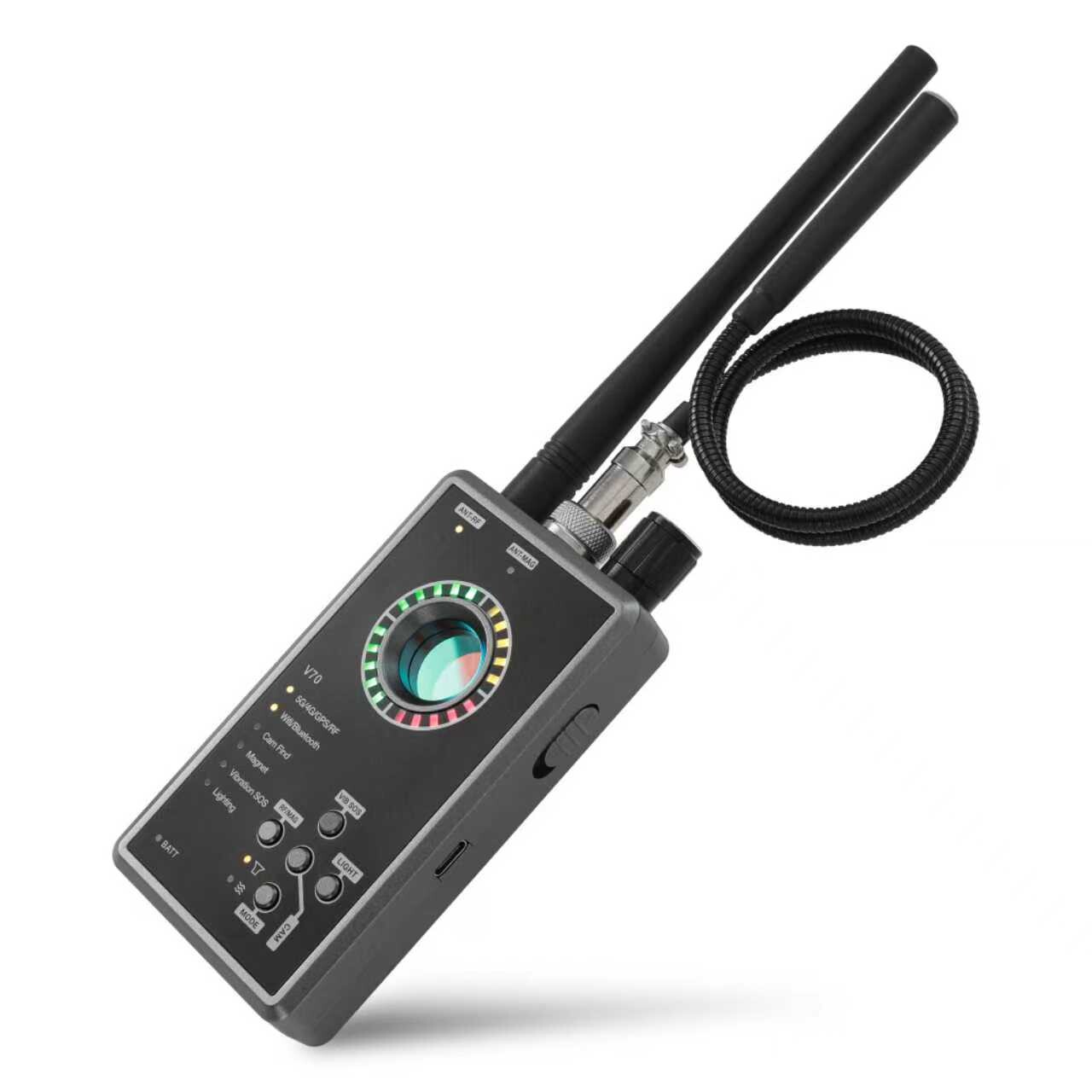

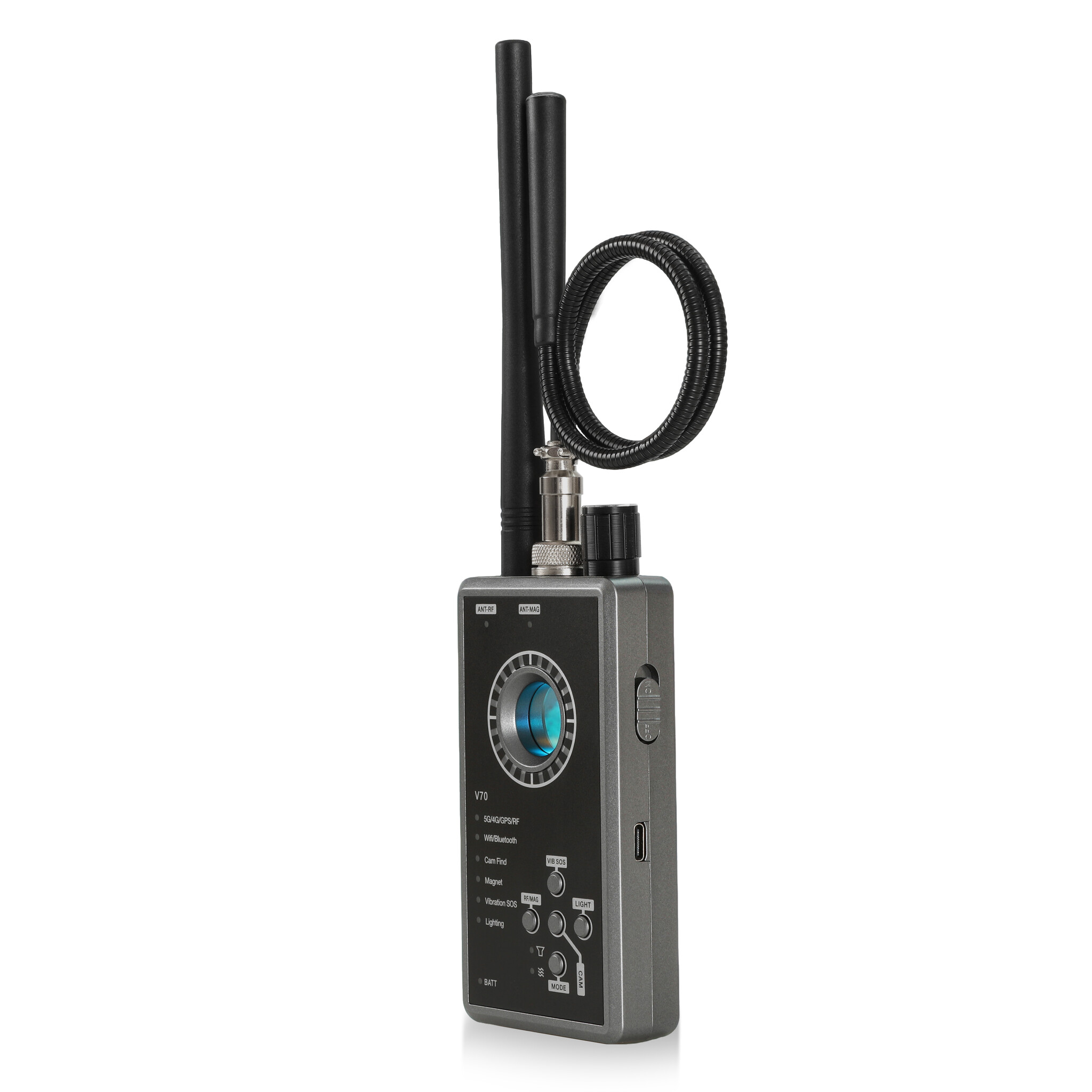

V70 RF Signal Detector

1. Why needs our V70?

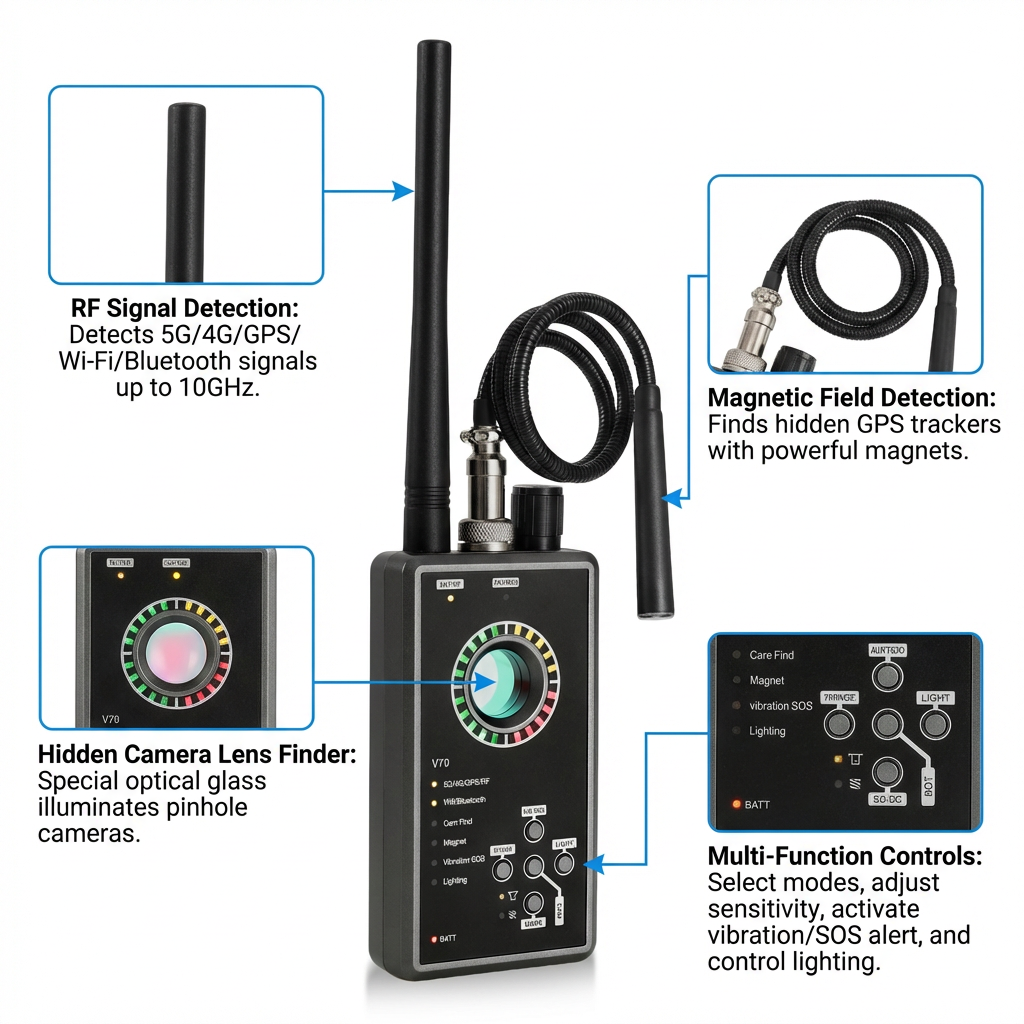

The Advanced Cameras/GPS/GSM Bug Detector is a multiple mode Detector that can be used to locate hidden cameras, GPS Trackers, listening devices, Wi-Fi, Bluetooth, FM, and more. It uses a camera lens finder to pinpoint the exact location of the camera lens. It also has a frequency scanner to scan for different frequencies ranging from 1 MHz to 12 GHz. The Advanced Bug Detector also has an attachment to scan for magnetic trackers that can be placed in hard to reach places.

2. Features

Detects all types of RF transmissions including analog and digital, audio and video

Frequency range 1 MHz – 12 GHz

High sensitivity for searching 2G~5G Mobile signals and wireless protocols (Wi-Fi, Bluetooth, etc.)

Adjustable alarm threshold

Portable, reliable and easy-to-use

Rechargeable Li-Ion battery with resource of 20 hours

Widest Handheld RF Detection Range (1 MHz - 12 GHz)

Precise Antennas provide increase detection sensitivity

Detects wireless hidden cameras

Detects wireless hidden microphones

Detects sources from GPS, WiFi, Bluetooth, GSM, 3G, and 4G/LTE,5G

3.Simultaneous Detection

4. Functions

4. How to work?

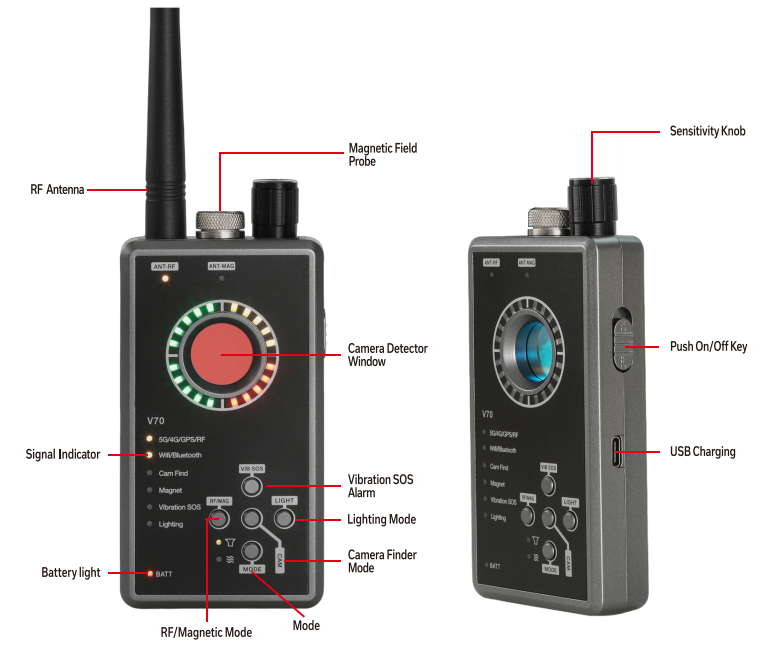

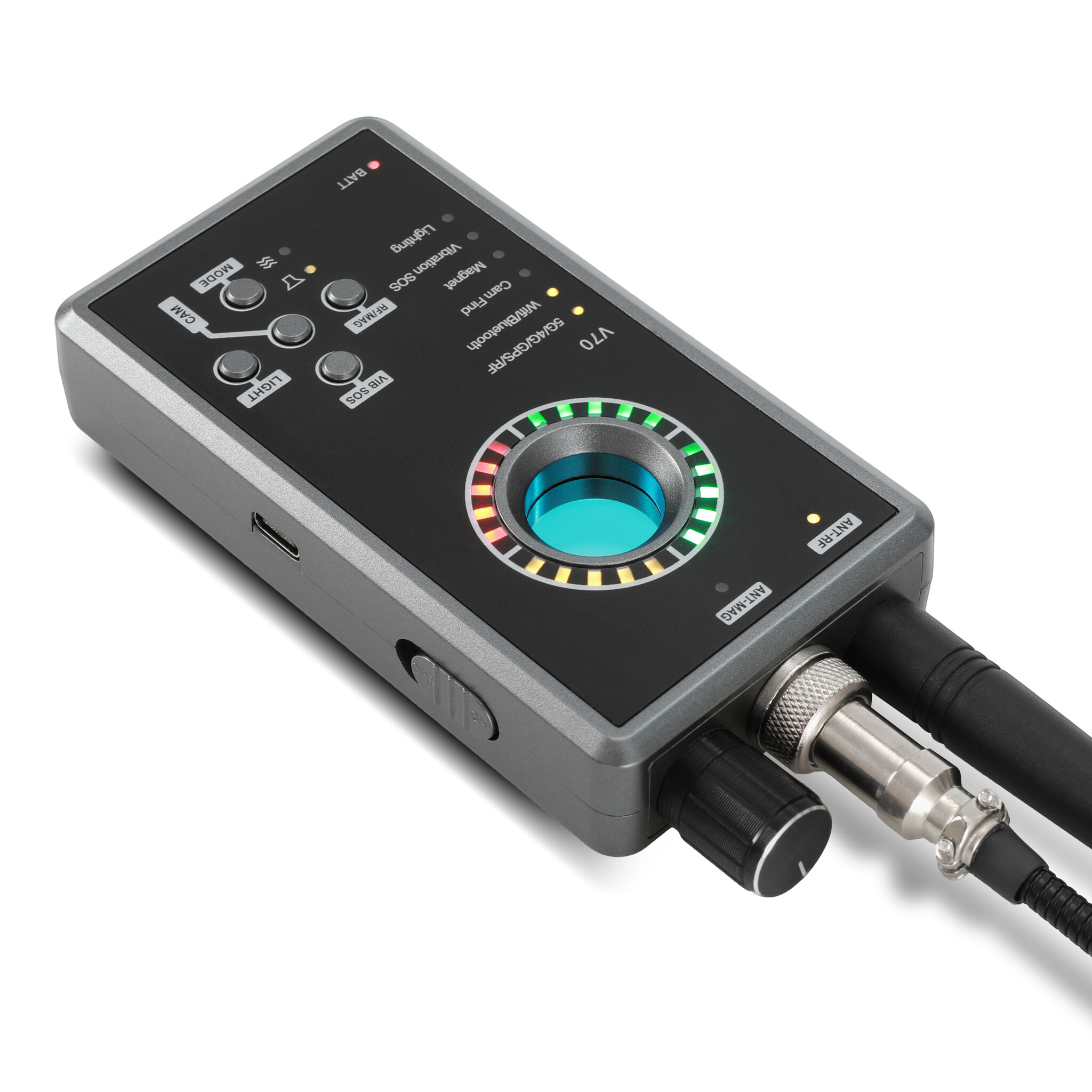

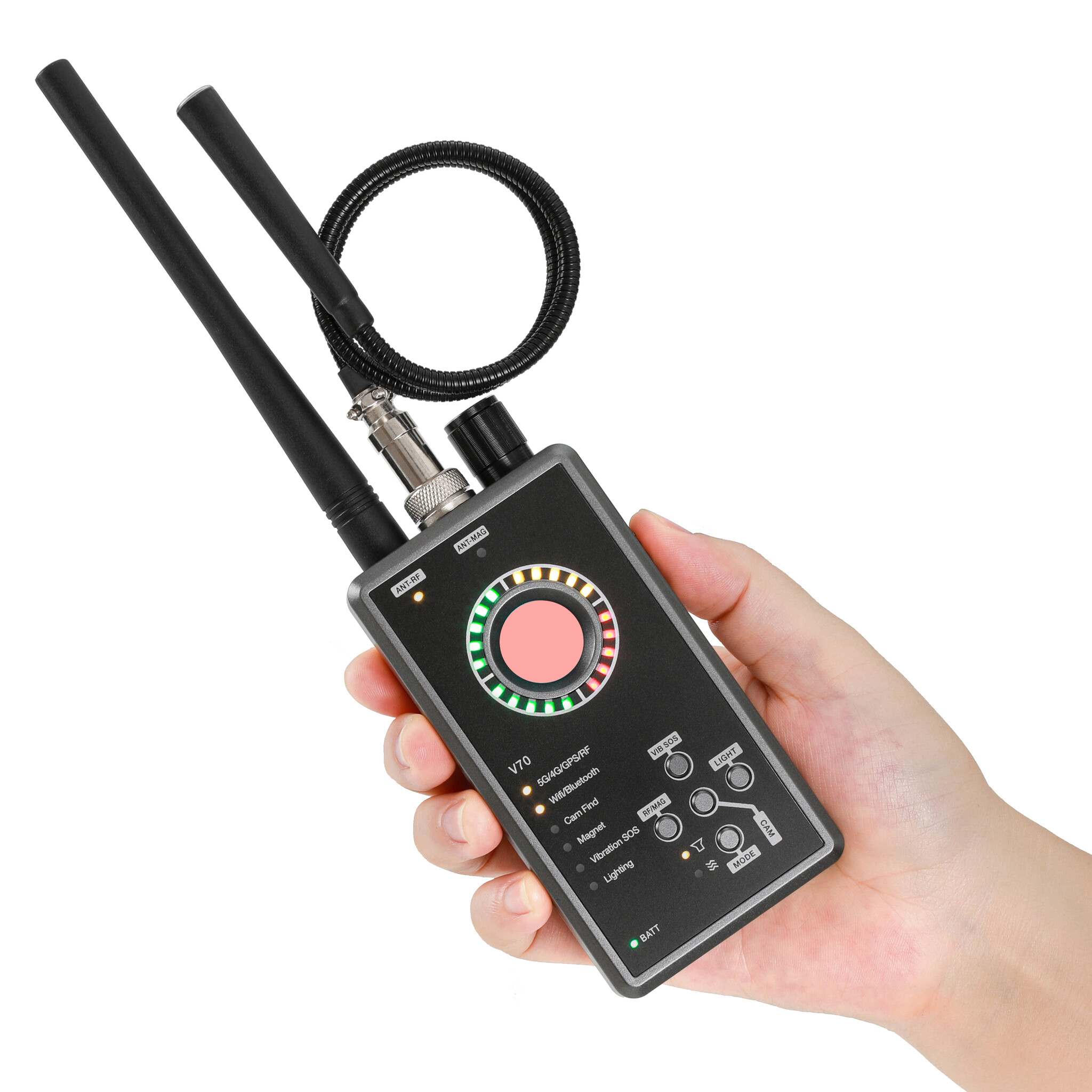

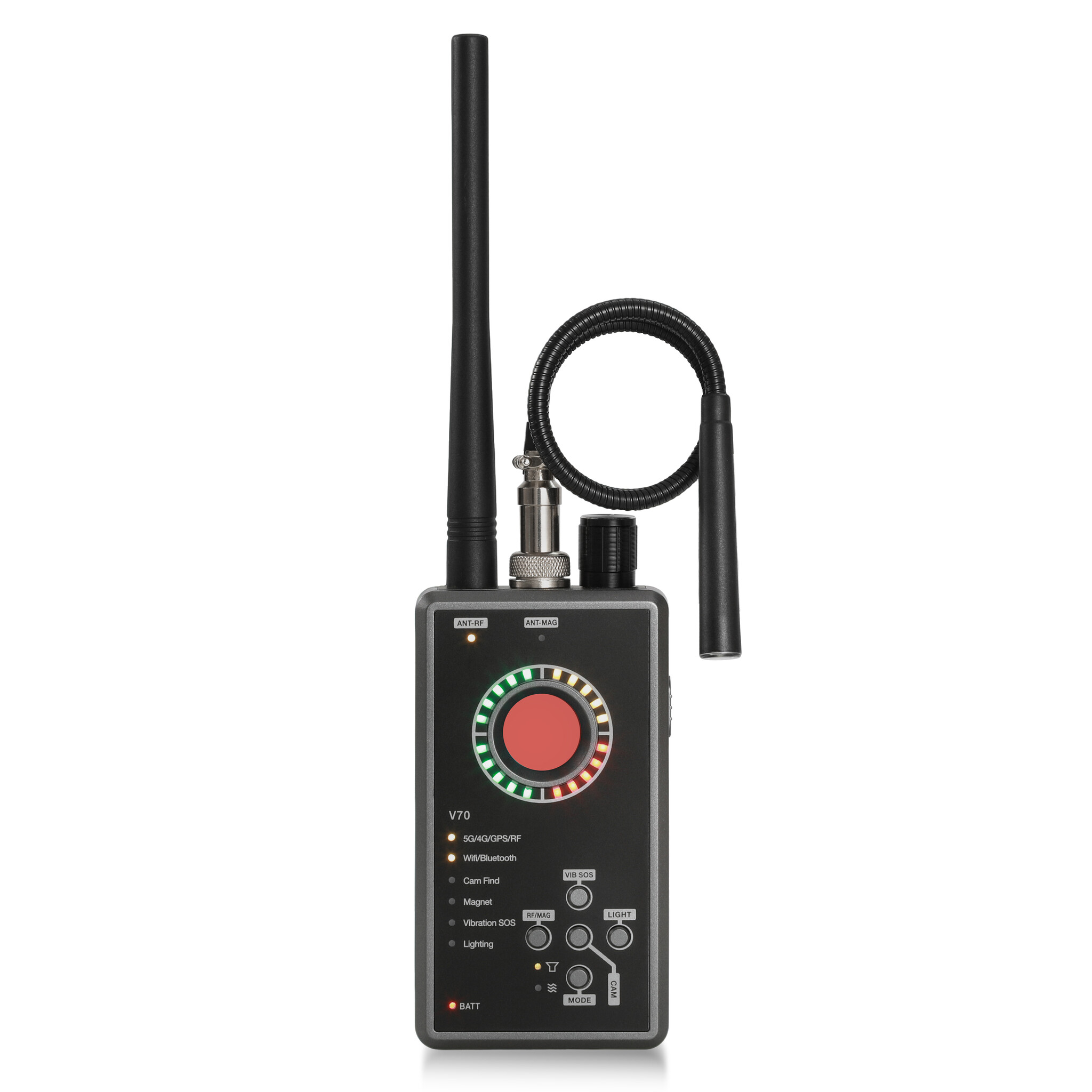

The device is handheld: the left side of the top is the antenna, and the middle is the magnetic probe. The right side is the sensitivity adjustment knob: turn clockwise to increase sensitivity and counterclockwise to decrease it.

Power: On the right side of the device body is the ON/OFF power switch.

When powered on, the Battery signal light shows green under normal battery level; when low on power, it turns red and needs to charge

● RF/MAG Button

1. After power-on, the device is initially in wireless communication RF detection mode, with the corresponding ANT-RF signal light on. It detects GPS, GSM, 3G, 4G, 5G, WIFI, and Bluetooth, walkie-talkie, 2.4G and RF signal bands.

2. Short-press RF/MAG once to switch the device to magnetic detection mode, with the corresponding ANT-MAG signal light on. Attach the magnetic probe accessory—the top of the probe shows blue light. When a magnet is detected, the top of the probe turns white and the device sounds an alarm.

● MODE Button

The device defaults to buzzer alarm mode after power-on, with the corresponding speaker symbol signal light on. Short-press MODE Button once .It switches to vibration mute mode, with the vibration symbol signal light on.

● CAM Button

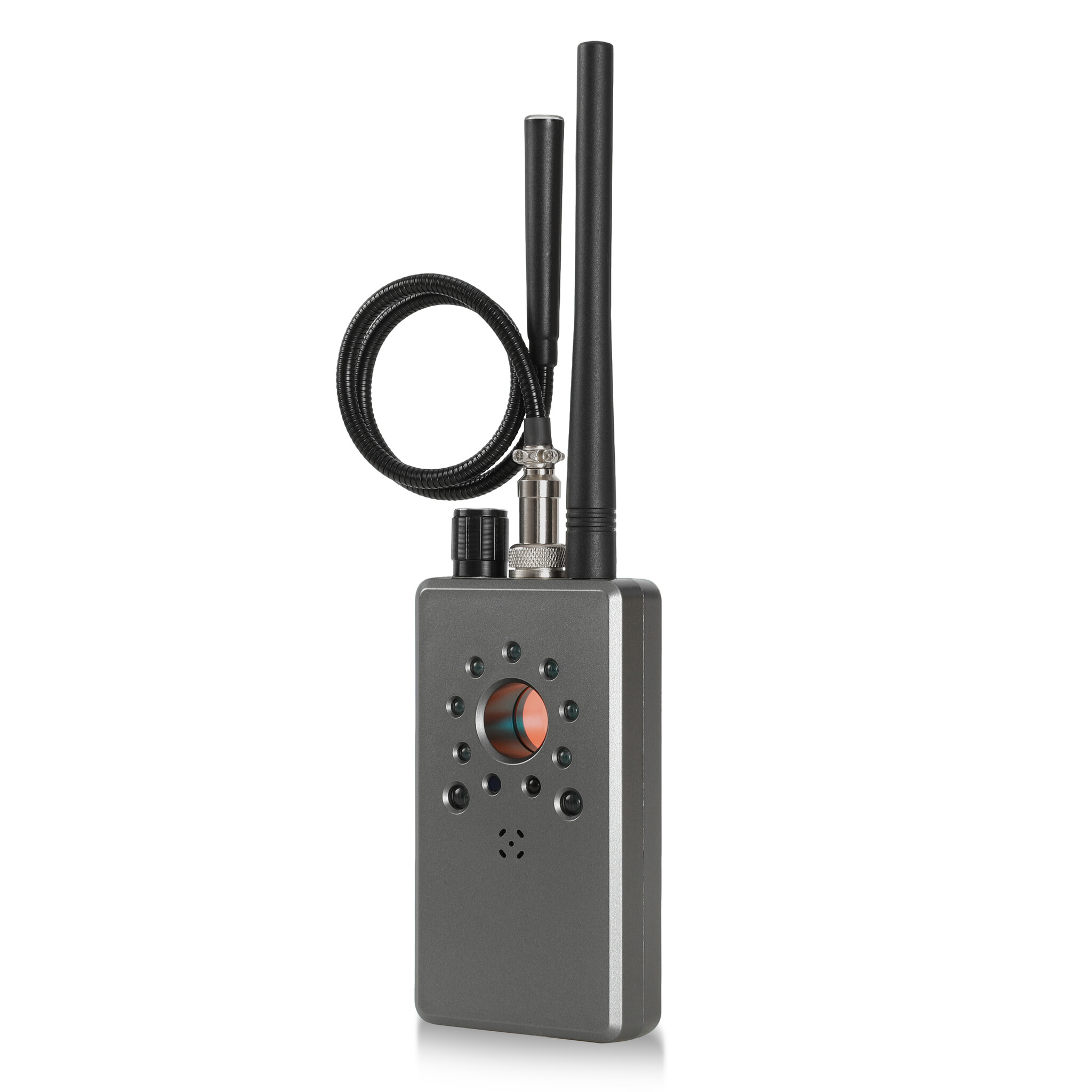

Camera Finder Mode (wired and wireless WIFI cameras). Short-press CAM Button: the red LED starts blinking slowly, and the wireless IR function turns on (wireless IR detection can find hidden cameras with infrared night vision in dark environments, within a detection distance of up to 10 meters). Short-press CAM button twice: the red LED blinks faster (IR detection remains on). Short-press three times: the red LED blinks at the fastest speed (IR detection remains on). Short-press four times: the red LED turns off; while IR detection is still on to detect hidden night vision cameras in darkness.

● LIGHT Button

For lighting Mode: Short-press Light button once to turn on 2 white LED lights. Adjust the light intensity via the Sensitivity Knob

● Sensitivity Knob

It has four functions: 1) adjust the sensitivity of signal detection distance; 2) adjust the sensitivity of IR detection distance; 3) adjust the strength of vibration detection sensitivity;4) adjust the brightness of the flashlight.

● VIB SOS Button

After power-on, short-press VIB SOS Button, switch the device to vibration detection mode. Adjust sensitivity via the Sensitivity knob according to the 20-grid signal indicator (20 grids for maximum sensitivity, 1 grid for minimum). After setting sensitivity, leave the device for 5 seconds—all signal lights turn off automatically, and the device enters into vibration alarm detection mode. When the device is moved or hit, it sounds an alarm (short-press VIB SOS to reset and re-enter detection mode); the alarm automatically resets after 3 minutes to re-enter detection mode. Vibration detection is low-power consumption, with a battery standby up to half a year.

● The 20-level LED signal intensity indicator shows signal strength from weak to strong: 10 green levels (low), 5 yellow levels (medium), and 5 red levels (high). An alarm or vibration is triggered when the signal reaches the 16th level (red).

● A Type-C charging port is on the right side of the device. The Battery indicator blinks red when charging and stays green when fully charged

5. Specification

Probe dynamic Range ：>79DB

Detection Sensitivity：≤ 0.03mv

Frequency range：

CDMA 824-849 MHz

GSM 880-920 MHz

GSM (DCS) 1710-1790 MHz

 WCDMA, 3G, GSM (PCS), DECT 1920-2000 MHz，4G 2100 MHz ,2600 MHz ,5G

Bluetooth, Wi-Fi 2400-2480 MHz

Wi-Max 3000-7000 MHz

Power: Rechargeable Li-Ion 2000mAh @ 3.7v

Operation Duration: up to 20 Hours

Charge Time: 4 hours

Charge Port: Type C

Threshold settings: 17 steps

Working Modes: Silent, Audio, Alarm

Operating Temp: 14-113°F

Working current: 60~110mA

Material: Plastic

Weight: 200g

Volume: 2 X 7 X 11.5 cm

6. Package includes

V70 Device

1 Antenna

1 Magnetic Antenna

1 Tape C cable

7. Warranty

We offer our V90 one year Warranty, and During the Warranty time, If it our quality problem, we will replace or repair depends on the different problems. And we ensure our quality confidently, and 100% quality control before we send to our clients, so do trust and choose our products freely. Our 24 aftersales service always ready for help
